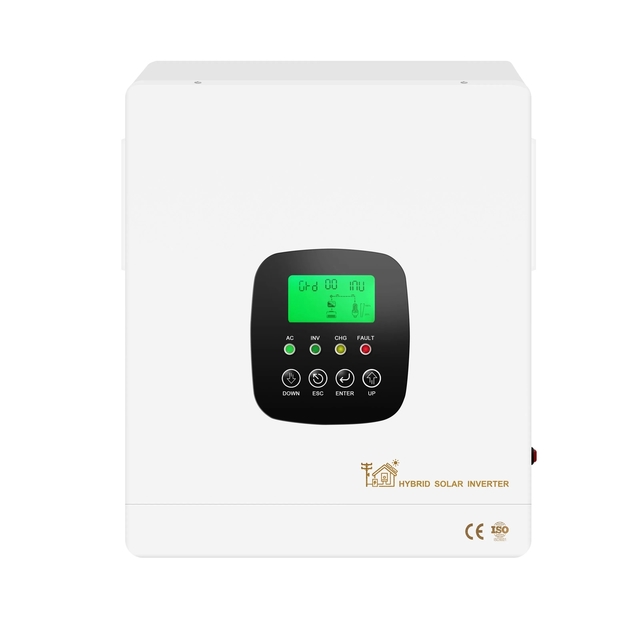

Premium Hybrid Solar Inverter with Bidirectional Energy Storage Ultra-wide MPPT Range and Pure Sine Wave Output
2 Questions
|
13 Sold
|
Inquiry
Collected In Wish List
Premium Hybrid Solar Inverter with Bidirectional Energy Storage Ultra-wide MPPT Range and Pure Sine Wave Output
SKU: 20260624181700C2
$169.47
$169.47
$189.47
$ 10.3
to
United States
Via
ePacket
You May Also Like
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
Description
Specification
Questions & Answers (2)
Reviews (0)
Premium Hybrid Solar Inverter for Domestic Photovoltaic Power Systems
RELIABLE WALL-MOUNTED HOME BATTERY STORAGE SYSTEM
High-frequency design with high power density, compact size, and efficiency. Bidirectional energy storage enables power flow control, allowing solar and mains electricity to charge the battery. Ultra-wide MPPT range supports 30Vdc to 80Vdc.
Technical Specifications
| Specification | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | |||
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V Can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac~280Vac (Can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz(50Hz), 55Hz-65Hz(60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V Can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Grid Voltage Range | 187Vac~264Vac | |||||
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions & Weight
| Model | Product Size (L·W·H mm) | Package Size (L·W·H mm) | N.W. (kg) | G.W. (kg) |
|---|---|---|---|---|
| 1000W | 265*231*91 | 340*286*156 | 3 | 3.5 |
| 1300W | 285*250*91 | 360*305*156 | 3.6 | 4.5 |
| 1800W | 310*250*91 | 385*305*156 | 4 | 5 |
| 1800w | 285*250*91 | 360*305*156 | 3.7 | 4.6 |
| 2300W | 325*275*102 | 400*330*167 | 3.9 | 4.8 |
| 3300W | 5.5 | 6.5 |
Advanced Features
- Customized batteries can be set with different types of charge and discharge parameters through the operation panel
- Supports configurable operating modes: grid-connected, off-grid, hybrid
- Allows grid-connected current settings
- Offers output and charging priority settings
- Features BMS communication for lithium batteries
- Supports battery-free operation mode
Frequently Asked Questions
Q1: Why choose us?
A: Years of experience in production. Professional sales and R&D team. Qualified products at competitive prices. Timely delivery and sincere services.
Q2: How is your after-sale service?
A: We offer a 1-2-year warranty and 1% spare parts for free. We will repair the PCB or provide a new one.
Q3: What certifications do you have?
A: ISO9001, ISO14001, CE, ROHS, UL, etc. All series products pass various labor tests per different countries" requirements.
Q4: Delivery time:
A: Standard products delivered within 15 days.
Q5: Can I have a sample order?
A: Yes, sample orders are welcome to test and check quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
