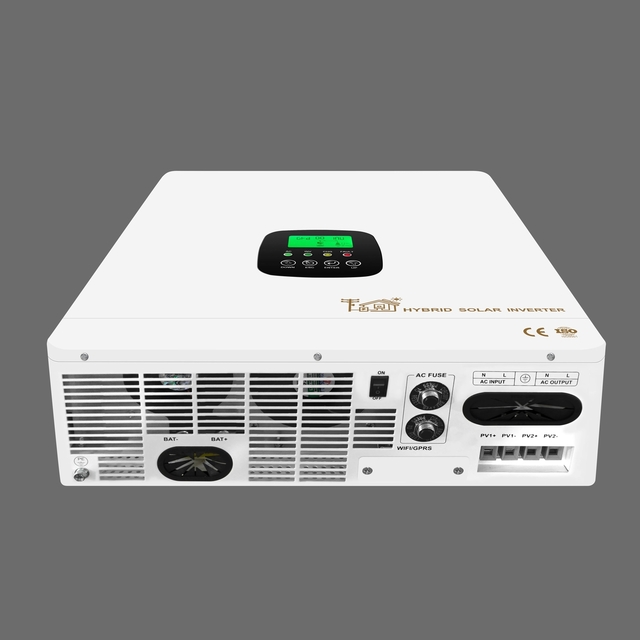

Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
27 Sold
|
Inquiry
Collected In Wish List
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
SKU: 20260624175935C2
$165.69
$165.69
$185.69
$ 18
to
United States
Via
DHL
You May Also Like
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
Description
Specification
Questions & Answers (0)
Reviews (0)
Integrated Solar Energy Storage Inverter with Advanced 230V Control
Reliable Wall-Mounted Home Battery Storage System
High-frequency, high power density compact design delivers exceptional efficiency. Features bidirectional storage for solar and mains charging with ultra-wide MPPT range of 30Vdc-80Vdc. Key Features
- Configurable modes: grid-connected, off-grid, hybrid
- Allows grid-connected current settings
- Provides output and charge priority settings
- Features BMS communication for lithium batteries
- Supports battery-free mode
- Customizable battery parameters via operation panel
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Product Size (L·W·H mm) | 265*231*91 | 285*250*91 | 310*250*91 | 285*250*91 | 325*275*102 | - |
| Net Weight (kg) | 3 | 3.6 | 4 | 3.7 | 3.9 | 5.5 |
Additional Specifications
General Performance: MPPT Tracking Efficiency ≥99.9%, Power Factor >0.98, Transfer Time 10ms (typical)
Display & Control: LCD+LED display, cooling fan with intelligent control
Communication: RS485, Mobile APP (WIFI Monitoring or GPRS monitoring - Optional)
Protection: IP20 protection degree, anti-islanding protection ≤2S
Output Wave: Pure Sine Wave
Display & Control: LCD+LED display, cooling fan with intelligent control
Communication: RS485, Mobile APP (WIFI Monitoring or GPRS monitoring - Optional)
Protection: IP20 protection degree, anti-islanding protection ≤2S
Output Wave: Pure Sine Wave
Frequently Asked Questions
Why choose us?
Years of experience, expert sales & R&D team, top-quality products, competitive prices, timely delivery, sincere service
How is your after-sale service?
1-2 years warranty, 1% spare parts free, PCB repair or replacement
What certifications do you have?
ISO9001, ISO14001, CE, ROHS, UL, etc. All series products pass various tests as per countries" requirements.
Delivery time?
Standard products delivered within 15 days
Can I have a sample order?
Yes, sample orders are welcomed to test quality
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
