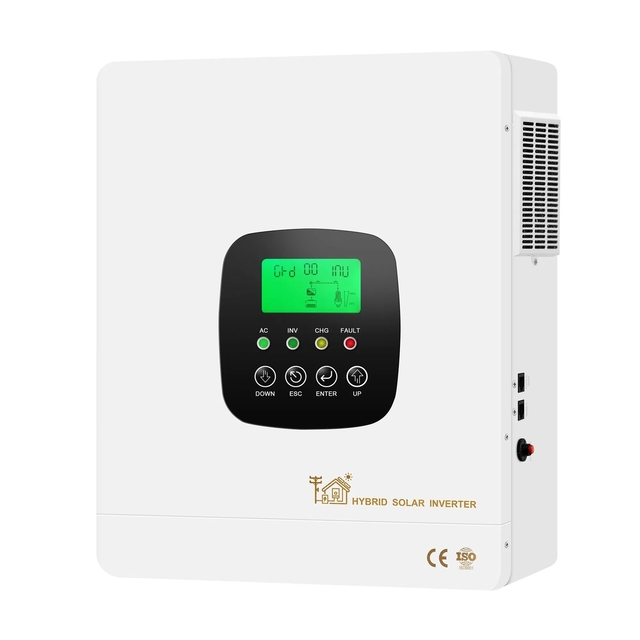

Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
23 Sold
|
Inquiry
Collected In Wish List
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
SKU: 20260624180816C2
$196.91
$196.91
$216.91
$ 24
to
United States
Via
Fedex IP
You May Also Like
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
Description
Specification
Questions & Answers (0)
Reviews (0)
Reliable Wall-Mounted Home Battery Storage System
High-frequency design with high power density, compact size, and high efficiency. Features bidirectional energy storage with dual power flow, enabling solar and mains charging. Wide MPPT range supporting 30Vdc to 80Vdc.
Key Features
- Supports configurable modes (grid-connected, off-grid, hybrid)
- Enables setting grid-connected current
- Offers output and charging priority settings
- Includes BMS communication for lithium batteries
- Supports battery-free operation
- Customized batteries can be set with different charge and discharge parameters
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Product Size (L·W·H mm) | 265*231*91 | 285*250*91 | 310*250*91 | 285*250*91 | 325*275*102 | - |
| Net Weight (kg) | 3 | 3.6 | 4 | 3.7 | 3.9 | 5.5 |
Additional Specifications
MPPT Tracking Channels: 1 Routed
MPPT Tracking Efficiency: ≥99.9%
Output Wave: Pure Sine Wave
Power Factor: >0.98 (Rated Power)
Transfer Time: 10ms (Typical value)
Display: LCD+LED
Cooling Method: Cooling fan in intelligent control
Communication: RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional)
Protection Degree: IP20
Anti-islanding protection: ≤2S
Product Images
Frequently Asked Questions
Why choose us?
Years in electrical production, professional sales & R&D team, quality product, competitive price, timely delivery, sincere service.
How is your after-sale service?
1-2 years warranty & 1% spare parts free. We repair PCB or provide new one.
What certification do you have?
ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass various laboratory tests per countries" requirements.
Delivery time:
Standard products delivered in 15 days.
Can I have a sample order?
Yes, sample orders are welcome to test and check quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
