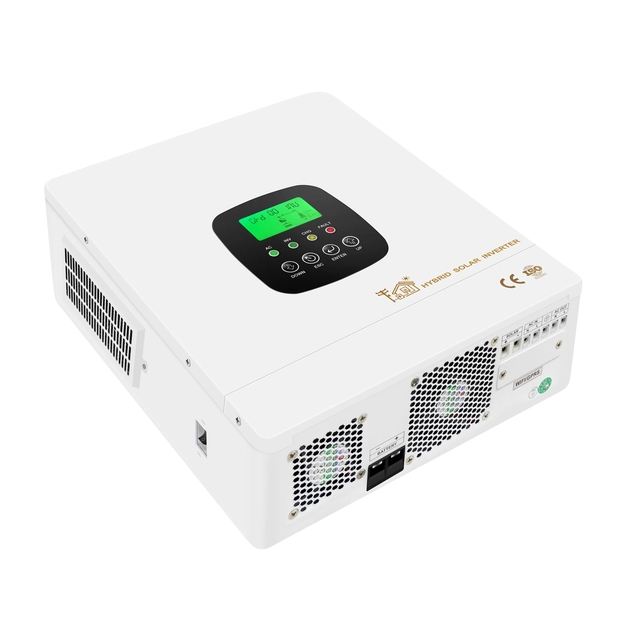

Powerful Solar Inverter and Mobile Energy Storage with Bidirectional Energy Storage, Ultra-Wide MPPT Range 30Vdc-80Vdc, and Pure Sine Wave Output
2 Questions
|
66 Sold
|
Inquiry
Collected In Wish List
Powerful Solar Inverter and Mobile Energy Storage with Bidirectional Energy Storage, Ultra-Wide MPPT Range 30Vdc-80Vdc, and Pure Sine Wave Output
SKU: 20260624181527C2
$173.62
$173.62
$193.62
$ 10
to
United States
Via
EMS
You May Also Like
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
Description
Specification
Questions & Answers (2)
Reviews (0)
Powerful Solar Inverter and Mobile Energy Storage for Household Use
Reliable Wall-Mounted Home Battery Storage System
High-frequency design with exceptional power density and efficiency. Features bidirectional energy storage for both solar and mains charging with ultra-wide MPPT range support from 30Vdc to 80Vdc.
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | |||
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Grid Voltage Range | 187Vac-264Vac | |||||
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W | 265×231×91 | 340×286×156 | 3 | 3.5 |
| 1300W | 285×250×91 | 360×305×156 | 3.6 | 4.5 |
| 1800W | 310×250×91 | 385×305×156 | 4 | 5 |
| 1800w | 285×250×91 | 360×305×156 | 3.7 | 4.6 |
| 2300W | 325×275×102 | 400×330×167 | 3.9 | 4.8 |
| 3300W | 5.5 | 6.5 |
Advanced System Features
Supports configurable operational modes: grid-connected, off-grid, and hybrid with adjustable grid-connected current settings.
Offers comprehensive output and charging priority settings with integrated BMS communication for lithium battery compatibility.
Supports flexible battery-free operation for various application scenarios.
Frequently Asked Questions
Why choose us?
Years of electrical equipment expertise, professional sales & R&D teams, competitive pricing, timely delivery, and sincere customer service.
How is your after-sale service?
1-2 years warranty with 1% spare parts free. Includes PCB repair or replacement services.
What certifications do you have?
ISO9001, ISO14001, CE, ROHS, UL, and others. All products pass labor testing per country requirements.
What is your delivery time?
Standard products delivered within 15 days.
Can I have a sample order?
Yes, sample orders are welcome to test product quality and performance.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
