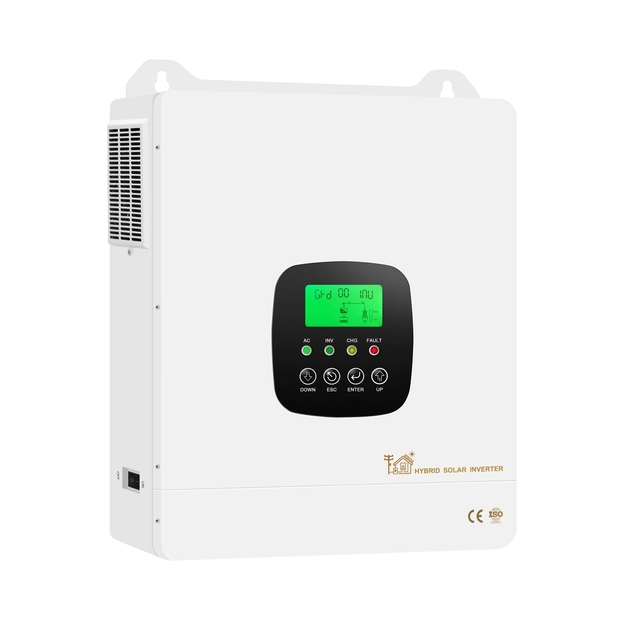

Compact Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
38 Sold
|
Inquiry
Collected In Wish List
Compact Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
SKU: 20260624180947C2
$205.94
$205.94
$225.94
$ 10.3
to
United States
Via
ePacket
You May Also Like
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
Description
Specification
Questions & Answers (0)
Reviews (0)
Compact Mobile Energy Storage Solar Inverter for Home Applications
Reliable Wall-Mounted Home Battery Storage System
High-frequency design with high power density, compact size, and high efficiency. Bidirectional storage design enables bidirectional power control, utilizing both solar and mains power for charging. Features ultra-wide MPPT range supporting 30Vdc to 80Vdc.
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions & Weight
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W | 265×231×91 | 340×286×156 | 3 | 3.5 |
| 1300W | 285×250×91 | 360×305×156 | 3.6 | 4.5 |
| 1800W | 310×250×91 | 385×305×156 | 4 | 5 |
| 1800w | 285×250×91 | 360×305×156 | 3.7 | 4.6 |
| 2300W | 325×275×102 | 400×330×167 | 3.9 | 4.8 |
| 3300W | - | - | 5.5 | 6.5 |
Advanced Features
- Supports configurable modes (grid-connected, off-grid, hybrid)
- Allows setting grid-connected current
- Provides output and charging priority settings
- Features BMS communication for lithium batteries
- Supports battery-free operation mode
Frequently Asked Questions
Why should you choose us?
Extensive electrical equipment experience, professional sales & R&D team, qualified products with competitive pricing, timely delivery, and sincere service.
How is your after-sale service?
We offer 1-2 years warranty and 1% spare parts free. We repair or replace PCBs as needed.
What kind of certification do you have?
ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass various tests per different countries" requirements.
What is the delivery time?
Standard products delivered within 15 days.
Can I have a sample order?
Yes, sample orders are welcome to test quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
