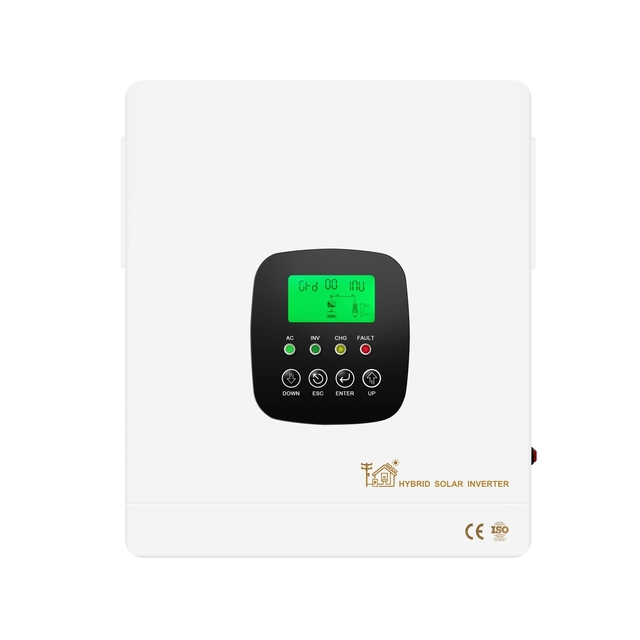

Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
15 Sold
|
Inquiry
Collected In Wish List
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
SKU: 20260624173114C2
$184.52
$184.52
$204.52
$ 10.3
to
United States
Via
ePacket
You May Also Like
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
Description
Specification
Questions & Answers (0)
Reviews (0)
Next-Generation Solar Inverter for Enhanced Home Energy Management
Reliable Wall-Mounted Home Battery Storage System
High-frequency design, compact size, and high efficiency bidirectional energy storage enables power flow control for solar and mains electricity charging with ultra-wide MPPT range supporting 30Vdc to 80Vdc.
Key Features
- Bidirectional energy storage with power flow control
- Ultra-wide MPPT range (30Vdc to 80Vdc)
- Configurable operation modes (grid-connected, off-grid, hybrid)
- Adjustable grid-connected current settings
- Output and charging priority settings
- BMS communication for lithium batteries
- Battery-free operation mode support
- LCD + LED display with intelligent cooling fan
- RS485/Mobile APP communication (WIFI or GPRS monitoring optional)
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| Battery Type | Lead-acid Battery/Lithium Battery (Customizable parameters via operation panel) | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Product Size (L×W×H mm) | 265×231×91 | 285×250×91 | 310×250×91 | 285×250×91 | 325×275×102 | - |
| Net Weight (kg) | 3 | 3.6 | 4 | 3.7 | 3.9 | 5.5 |
Additional Features
Supports configurable modes (grid-connected, off-grid, hybrid) with adjustable grid-connected current settings.
Provides output and charging priority settings with BMS communication for lithium batteries.
Supports battery-free operation mode for flexible system configuration.
Frequently Asked Questions
Why should you choose us?
Years of experience in electrical equipment, professional sales and R&D team, qualified products, competitive pricing, timely delivery, and sincere service.
How is your after-sale service?
1-2 years warranty and 1% spare parts free. We repair the PCB or provide a new one.
What kind of certification do you have?
ISO9001, ISO14001, CE, ROHS, UL, and more. All series products pass varied laboratory tests per different country requirements.
What is the delivery time?
Standard products delivered within 15 days.
Can I place a sample order?
Yes, we welcome sample orders to test and check quality.
