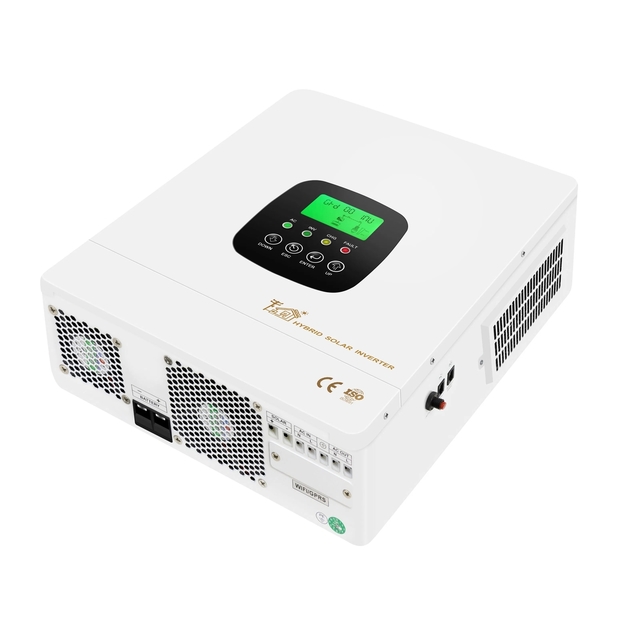

Hybrid Solar Inverter with Ultra-wide MPPT Range 30Vdc-80Vdc and Bidirectional Energy Storage for Pure Sine Wave Output
2 Questions
|
52 Sold
|
Inquiry
Collected In Wish List
Hybrid Solar Inverter with Ultra-wide MPPT Range 30Vdc-80Vdc and Bidirectional Energy Storage for Pure Sine Wave Output
SKU: 20260624181321C2
$206.71
$206.71
$226.71
$ 10.3
to
United States
Via
ePacket
You May Also Like
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
Description
Specification
Questions & Answers (2)
Reviews (0)
Hybrid Solar Inverter with Mobile Energy Storage for Domestic Use
Reliable Wall-Mounted Home Battery Storage System
This high-frequency design hybrid solar inverter features exceptional power density in a compact size with maximum efficiency. The bidirectional energy storage system enables charging from both solar panels and mains electricity, while the ultra-wide MPPT range supports 30Vdc to 80Vdc for optimal solar energy harvesting.
Key Features
- High-frequency design with compact size and high efficiency
- Bidirectional energy storage for solar and mains electricity charging
- Ultra-wide MPPT range (30Vdc-80Vdc)
- Configurable operation modes: grid-connected, off-grid, hybrid
- Grid-connected current settings
- Output and charging priority settings
- BMS communication for lithium batteries
- Battery-free operation support
- LCD display with LED indicators
- RS485/Mobile APP communication (WIFI or GPRS monitoring optional)
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| Battery Type | Lead-acid Battery/Lithium Battery (Customizable charge/discharge parameters) | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Output Wave | Pure Sine Wave | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Protection Degree | IP20 | |||||
Product Images
Frequently Asked Questions
Why choose us?
Years of expertise in electrical equipment, professional sales and R&D teams, competitive pricing, timely delivery, and sincere service.
How is your after-sale service?
1-2 years warranty, 1% spare parts free. We repair PCBs or provide new ones.
What certifications do you have?
ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass various labor tests per country requirements.
Delivery time:
Standard products delivered within 15 days.
Can I have a sample order?
Yes, we welcome sample orders to test and check quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
Q: I was skeptical about office bean-to-cup machines, but this OfficePro model proved me wrong. The customizable strength and cup size options let everyone get their ideal coffee, and the automatic cleaning feature saves our admin team so much time. Quiet operation is a bonus—no more noisy machines disrupting meetings
A:
We appreciate your trust in OfficePro, Liam! It’s fantastic to hear the customization and quiet design are enhancing your office experience. The automatic cleaning system is designed to reduce maintenance hassle, so your team can focus on what matters most.
Q: This machine has transformed our office coffee culture. No more settling for instant coffee—everyone now looks forward to their morning brew. The operation is so simple that even our older team members have no trouble using it. The build quality feels sturdy and long-lasting.
A:
This is the official product QA response, covering all the questions raised by users regarding product functions, usage scenarios, technical parameters and after-sales support. We have verified and sorted out the answers in detail to ensure accuracy and comprehensiveness for your reference.
0
Based on 0 reviews
Recently Viewed
