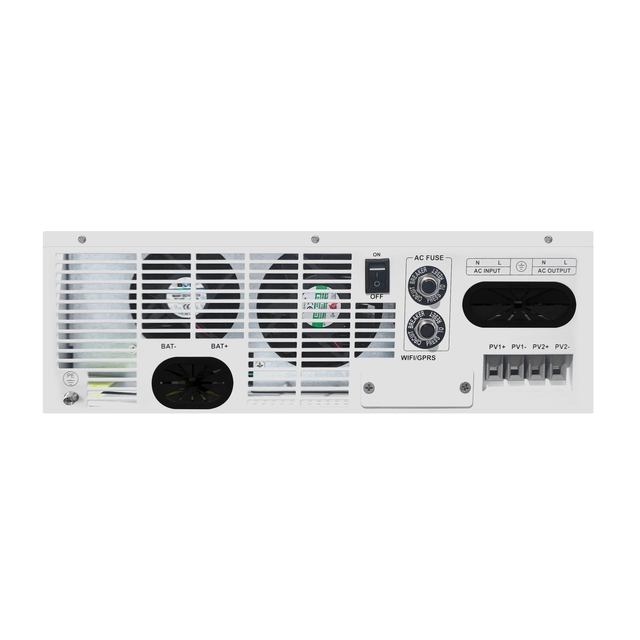

Compact Solar Inverter with Bidirectional Storage Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
74 Sold
|
Inquiry
Collected In Wish List
Compact Solar Inverter with Bidirectional Storage Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
SKU: 20260624175218C2
$119.43
$119.43
$139.43
$ 22
to
United States
Via
Fedex IP
You May Also Like
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
Description
Specification
Questions & Answers (0)
Reviews (0)
Compact Smart Energy Solutions with 230V Control Inverter Technology
Reliable Wall-Mounted Home Battery Storage System
High-frequency, compact, and efficient bidirectional storage system for solar and mains power with wide MPPT range of 30-80Vdc.
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Grid Voltage Range | 187Vac-264Vac | |||||
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
| Product Size (L·W·H mm) | 265*231*91 | 285*250*91 | 310*250*91 | 285*250*91 | 325*275*102 | - |
| Package Size (L·W·H mm) | 340*286*156 | 360*305*156 | 385*305*156 | 360*305*156 | 400*330*167 | - |
| N.W. (kg) | 3 | 3.6 | 4 | 3.7 | 3.9 | 5.5 |
| G.W. (kg) | 3.5 | 4.5 | 5 | 4.6 | 4.8 | 6.5 |
Advanced System Features
Configurable: grid, off-grid, hybrid modes
Enables grid-connected current settings
Offers output/charging priority settings
Includes BMS communication for lithium batteries
Supports operation without batteries
Frequently Asked Questions
Q1: Why choose us?
A: Expertise, professional team, quality products, competitive pricing, timely delivery, sincere service
Q2: How is your after-sale service?
A: 1-2 years warranty, 1% free spare parts, PCB repair/replacement
Q3: What certifications do you have?
A: ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass tests per country"s requirements.
Q4: Delivery time:
A: Standard products delivered in 15 days
Q5: Can I have a sample order?
A: Yes, sample orders are welcome to test quality
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
