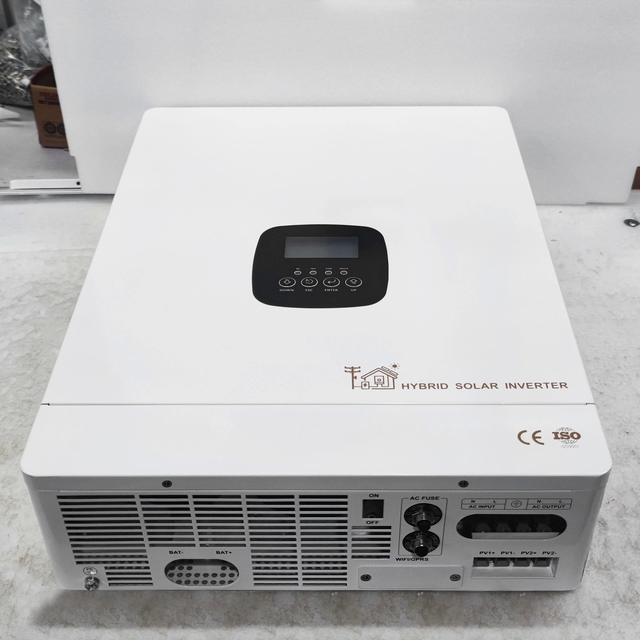

Efficient Solar Inverter with Ultra-wide MPPT 30Vdc-80Vdc and Bidirectional Energy Storage for Pure Sine Wave Output
2 Questions
|
32 Sold
|
Inquiry
Collected In Wish List
Efficient Solar Inverter with Ultra-wide MPPT 30Vdc-80Vdc and Bidirectional Energy Storage for Pure Sine Wave Output
SKU: 20260624174602C2
$159.67
$159.67
$179.67
$ 10.3
to
United States
Via
ePacket
You May Also Like
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
Description
Specification
Questions & Answers (2)
Reviews (0)
Efficient Domestic Solar Inverter with Smart Energy Storage 230V Control
Reliable Wall-Mounted Home Battery Storage System
High-frequency, high power density compact design with exceptional efficiency. Features bidirectional storage for solar and mains charging with ultra-wide MPPT range.
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Grid Voltage Range | 187Vac-264Vac | |||||
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
| Model | Product Size (L·W·H mm) | Package Size (L·W·H mm) | N.W. (kg) | G.W. (kg) |
|---|---|---|---|---|
| 1000W/1300W | 265*231*91 | 340*286*156 | 3.0 | 3.5 |
| 1800W | 285*250*91 | 360*305*156 | 3.6 | 4.5 |
| 1800w | 310*250*91 | 385*305*156 | 4.0 | 5.0 |
| 2300W | 285*250*91 | 360*305*156 | 3.7 | 4.6 |
| 3300W | 325*275*102 | 400*330*167 | 5.5 | 6.5 |
Advanced Features
- Configurable modes: grid-connected, off-grid, hybrid operation
- Allows grid-connected current setting for optimal performance
- Output and charging priority settings for energy management
- Features BMS communication for lithium battery compatibility
- Supports battery-free operation mode for flexible installation
Frequently Asked Questions
Why choose us?
Years of experience, professional sales & R&D team, qualified products, competitive prices, timely delivery, sincere service
How is your after-sale service?
1-2 years warranty, 1% spare parts free, PCB repair/replacement
What certifications do you have?
ISO9001, ISO14001, CE, ROHS, UL, etc. All series products pass various tests per countries" requirements.
Delivery time:
Standard products delivered within 15 days
Can I have a sample order?
Yes, sample orders are welcomed to test quality
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
