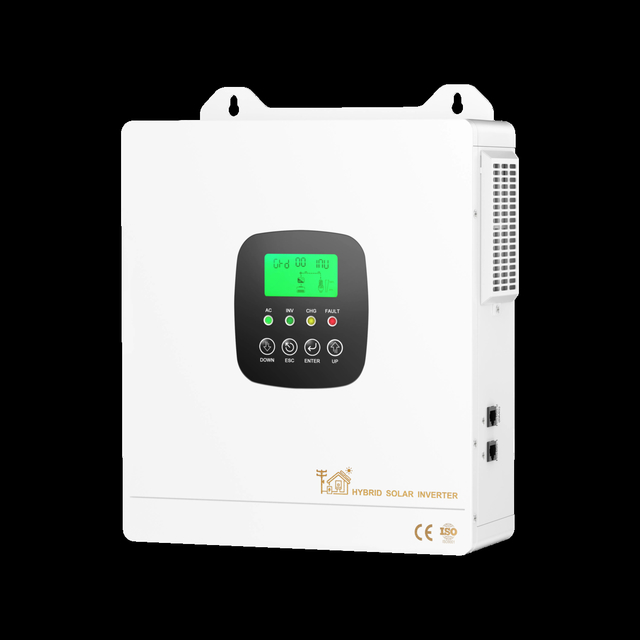

Durable Mobile Energy Storage Inverter with Bidirectional Energy Flow and Pure Sine Wave Output for Solar Power MPPT Range 30Vdc-80Vdc
Collected In Wish List
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
High-frequency design, compact and efficient with bidirectional energy flow for solar and mains charging. Features MPPT range of 30Vdc-80Vdc.
- Configurable modes: grid-connected, off-grid, hybrid
- Set grid-connected current capability
- Output and charging priority settings
- BMS communication for lithium batteries
- Supports battery-free operation
- Customizable battery parameters for lead-acid and lithium batteries
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
MPPT Tracking Efficiency: ≥99.9% | Transfer Time: 10ms (Typical) | Display: LCD+LED | Cooling: Intelligent fan control | Communication: RS485/Mobile APP (WIFI or GPRS monitoring optional) | Protection Degree: IP20
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W-1800W | 265×231×91 to 310×250×91 | 340×286×156 to 385×305×156 | 3-4 | 3.5-5 |
| 2300W-3300W | 285×250×91 to 325×275×102 | 360×305×156 to 400×330×167 | 3.7-5.5 | 4.6-6.5 |
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Focus on details and user experience, providing stable and trustworthy quality.
