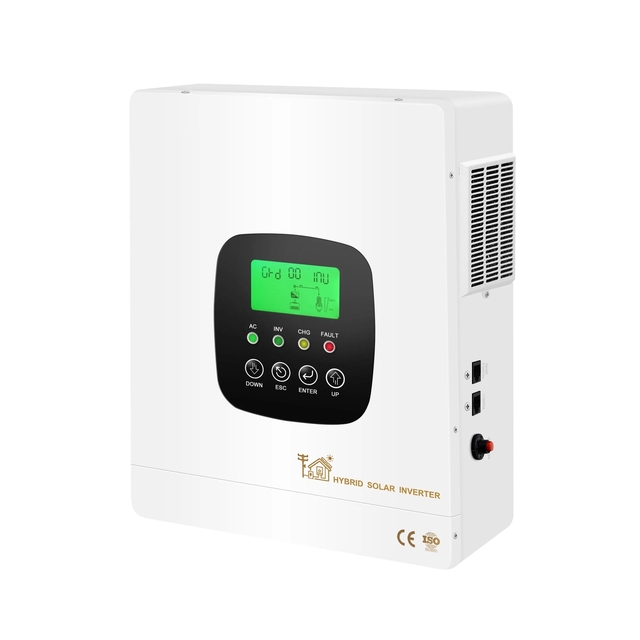

Reliable Solar Inverter with Ultra-wide MPPT Range 30Vdc to 80Vdc, Bidirectional Energy Flow, and Pure Sine Wave Output
2 Questions
|
53 Sold
|
Inquiry
Collected In Wish List
Reliable Solar Inverter with Ultra-wide MPPT Range 30Vdc to 80Vdc, Bidirectional Energy Flow, and Pure Sine Wave Output
SKU: 20260624171841C2
$204.7
$204.7
$224.7
$ 10.3
to
United States
Via
ePacket
You May Also Like
-13%
High-Efficiency Off-Grid Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range
$131.72
- $191.72
$151.72
-10%
Bidirectional Energy Storage Solar Inverter with Ultra-Wide MPPT Range and Pure Sine Wave Output
$184.52
- $244.52
$204.52
-11%
Ultra-wide MPPT Range 30Vdc-80Vdc Bidirectional Energy Storage Solar Inverter with Pure Sine Wave Output
$165.69
- $225.69
$185.69
Description
Specification
Questions & Answers (2)
Reviews (0)
Reliable Domestic Photovoltaic Power Generation with Smart Solar Inverter
Product Overview
RELIABLE WALL-MOUNTED HOME BATTERY STORAGE SYSTEM
- High-frequency design with compact size and high efficiency
- Bidirectional energy flow for solar and mains charging
- Ultra-wide MPPT range: 30Vdc to 80Vdc
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V Can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac~280Vac (Can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz(50Hz), 55Hz-65Hz(60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V Can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Grid Voltage Range | 187Vac~264Vac | |||||
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Advanced Features
Supports configurable operating modes: grid-connected, off-grid, hybrid. Allows setting grid-connected current.
Provides output and charging priority settings. Features BMS communication for lithium batteries.
Supports battery-free operation mode for flexible system configuration.
