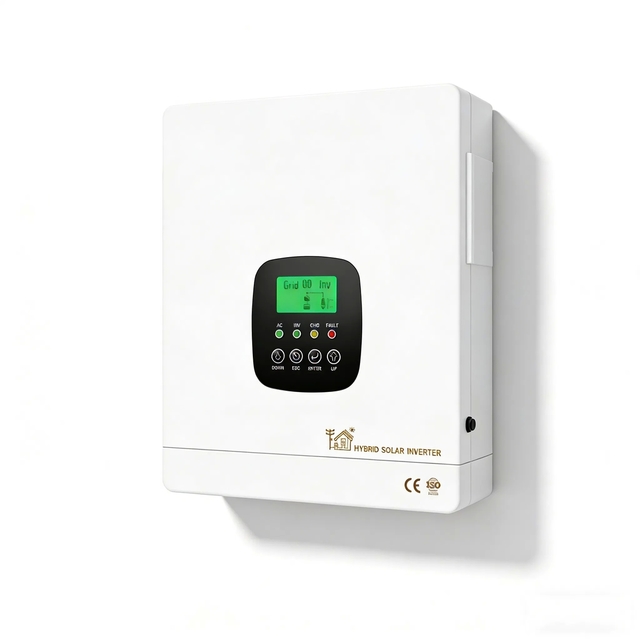

Feimengsi Hybrid Inverter with Bidirectional Energy Storage Ultra-Wide MPPT Range and Pure Sine Wave Output
2 Questions
|
95 Sold
|
Inquiry
Collected In Wish List
Feimengsi Hybrid Inverter with Bidirectional Energy Storage Ultra-Wide MPPT Range and Pure Sine Wave Output
SKU: 20260624173153C2
$166.91
$166.91
$186.91
$ 22
to
United States
Via
Fedex IP
You May Also Like
-10%
230V Hybrid Inverter with Bidirectional Energy Storage and Pure Sine Wave for Solar Power Generation
$179.63
- $239.63
$199.63
Description
Specification
Questions & Answers (2)
Reviews (0)
Feimengsi Hybrid Inverter - Innovative Power System
Reliable Wall-Mounted Home Battery Storage System
High-frequency design with compact size and high efficiency. Bidirectional energy storage enables solar and mains charging with ultra-wide MPPT range (30-80Vdc support).
Detailed Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | |||
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery (Customized batteries can be set with different charge/discharge parameters via operation panel) | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (Can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Grid Voltage Range | 187Vac-264Vac | |||||
| Rated Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions & Weight
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W/1300W | 265×231×91 | 340×286×156 | 3 / 3.6 | 3.5 / 4.5 |
| 1800W | 285×250×91 / 310×250×91 | 360×305×156 / 385×305×156 | 4 / 3.7 | 5 / 4.6 |
| 2300W/3300W | 325×275×102 | 400×330×167 | 3.9 / 5.5 | 4.8 / 6.5 |
Advanced Features
- Supports configurable modes: grid-connected, off-grid, hybrid
- Enables grid-connected current setting
- Offers output and charging priority settings
- Includes BMS communication for lithium batteries
- Supports battery-free operation
