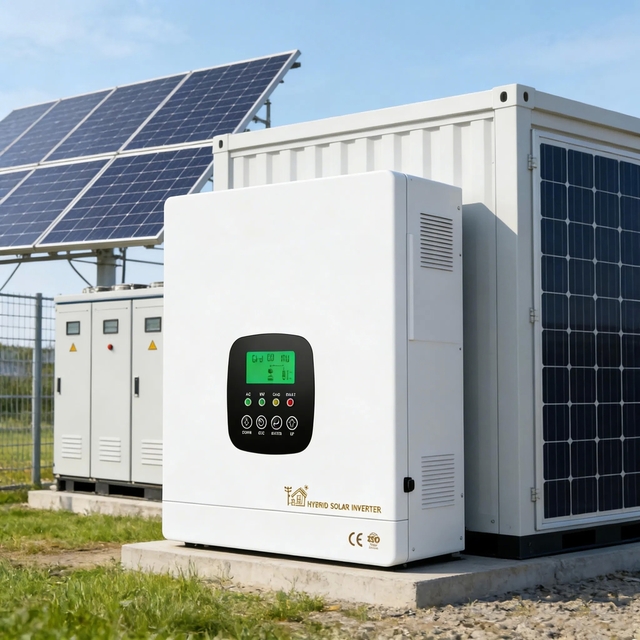

Feimengsi Hybrid Inverter - Home Battery Storage System with Bidirectional Energy Storage, Ultra-wide MPPT Range, and Pure Sine Wave Output
Collected In Wish List
230V Hybrid Inverter with Bidirectional Energy Storage and Pure Sine Wave for Solar Power Generation
High-frequency design with compact size, high power density, and exceptional efficiency. Features bidirectional energy storage for solar and mains electricity charging with ultra-wide MPPT range support from 30Vdc to 80Vdc.
- Supports configurable operating modes: grid-connected, off-grid, hybrid
- Allows setting of grid-connected current
- Provides output and charging priority settings
- Features BMS communication for lithium batteries
- Supports battery-free operation mode
- Customizable battery parameters for different battery types
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
Display: LCD+LED
Cooling Method: Cooling fan in intelligent control
Communication: RS485/Mobile APP (WIFI Monitoring or GPRS monitoring - Optional)
Protection Degree: IP20
Output Wave: Pure Sine Wave
MPPT Tracking Efficiency: ≥99.9%
Transfer Time: 10ms (Typical value)
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W-1800W | 265×231×91 to 310×250×91 | 340×286×156 to 385×305×156 | 3-4 | 3.5-5 |
| 2300W-3300W | 285×250×91 to 325×275×102 | 360×305×156 to 400×330×167 | 3.7-5.5 | 4.6-6.5 |
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Focus on details and user experience, providing stable and trustworthy quality.
