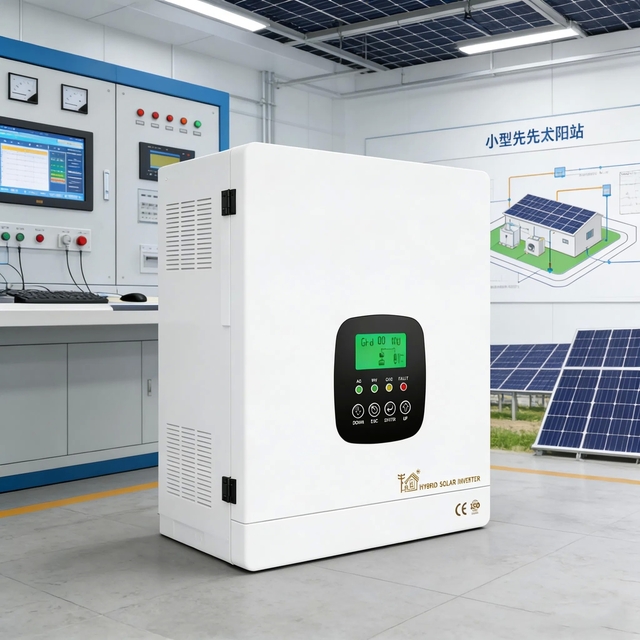

Feimengsi 1000W Hybrid Inverter with Pure Sine Wave and MPPT Tracking Efficiency ≥99.9 for Reliable Energy Storage
2 Questions
|
65 Sold
|
Inquiry
Collected In Wish List
Feimengsi 1000W Hybrid Inverter with Pure Sine Wave and MPPT Tracking Efficiency ≥99.9 for Reliable Energy Storage
SKU: 20260624171407C2
$197.7
$197.7
$217.7
$ 10.3
to
United States
Via
ePacket
You May Also Like
-10%
230V Hybrid Inverter with Bidirectional Energy Storage and Pure Sine Wave for Solar Power Generation
$179.63
- $239.63
$199.63
Description
Specification
Questions & Answers (2)
Reviews (0)
Reliable Wall-Mounted Home Battery Storage System
High-frequency design with exceptional power density, compact size, and high efficiency. This bidirectional energy storage system enables both solar and mains electricity to charge the battery with an ultra-wide MPPT range supporting 30-80Vdc.
Key Features
- Supports configurable modes (grid-connected, off-grid, hybrid)
- Enables grid-connected current setting
- Offers output and charging priority settings
- Features BMS communication for lithium batteries
- Supports battery-free operation mode
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery (Customizable charge/discharge parameters via operation panel) | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V configurable) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (configurable) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Output Wave | Pure Sine Wave | |||||
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss | 1% Rated Power (Typical) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Intelligent cooling fan control | |||||
| Communication | RS485/Mobile APP (WIFI or GPRS monitoring - Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W | 265×231×91 | 340×286×156 | 3 | 3.5 |
| 1300W | 285×250×91 | 360×305×156 | 3.6 | 4.5 |
| 1800W | 310×250×91 | 385×305×156 | 4 | 5 |
| 1800w | 285×250×91 | 360×305×156 | 3.7 | 4.6 |
| 2300W | 325×275×102 | 400×330×167 | 3.9 | 4.8 |
| 3300W | - | - | 5.5 | 6.5 |
Frequently Asked Questions
Why choose us?
Extensive experience in electrical equipment production. Professional sales & R&D team. Qualified products at competitive prices. Timely delivery. Sincere service.
How is your after-sale service?
1-2 years warranty and 1% free spare parts. We repair PCB or provide a new one.
What certifications do you have?
ISO9001, ISO14001, CE, ROHS, UL, etc. All series products pass various labor tests per countries" requirements.
Delivery time:
Standard products delivered within 15 days.
Can I have a sample order?
Yes, we welcome sample orders to test and check quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
