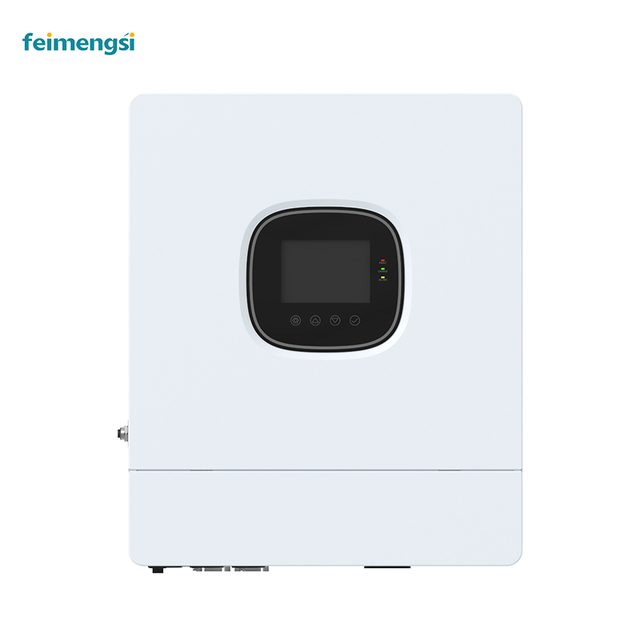

Feimengsi Hybrid Inverter with Bidirectional Energy Control Ultra-Wide MPPT Range and Pure Sine Wave Output
10 Sold
|
Inquiry
Collected In Wish List
Feimengsi Hybrid Inverter with Bidirectional Energy Control Ultra-Wide MPPT Range and Pure Sine Wave Output
SKU: 20260624171643C2
$159.91
$159.91
$179.91
$ 22
to
United States
Via
Fedex IP
You May Also Like
-10%
230V Hybrid Inverter with Bidirectional Energy Storage and Pure Sine Wave for Solar Power Generation
$179.63
- $239.63
$199.63
Description
Specification
Questions & Answers (0)
Reviews (0)
Reliable Wall-Mounted Home Battery Storage System
Key Features
- Compact high-frequency design with high power density and efficiency
- Bidirectional energy control for solar and mains charging
- Ultra-wide MPPT range, supports 30Vdc to 80Vdc
- Configurable operating modes: grid-connected, off-grid, hybrid
- Allows grid-connected current setting
- Output and charging priority settings
- BMS communication for lithium batteries
- Supports battery-free operation mode
- Customized battery settings for different charge and discharge parameters
Technical Specifications
| Specification | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V Can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac~280Vac (Can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz(50Hz), 55Hz-65Hz(60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V Can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Grid Voltage Range | 187Vac~264Vac | |||||
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions
| Model | Product Size (L×W×H mm) | Package Size (L×W×H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W | 265×231×91 | 340×286×156 | 3 | 3.5 |
| 1300W | 285×250×91 | 360×305×156 | 3.6 | 4.5 |
| 1800W | 310×250×91 | 385×305×156 | 4 | 5 |
| 1800w | 285×250×91 | 360×305×156 | 3.7 | 4.6 |
| 2300W | 325×275×102 | 400×330×167 | 3.9 | 4.8 |
| 3300W | - | - | 5.5 | 6.5 |
Product Features
Company Profile
Frequently Asked Questions
Q1: Why choose us?
A: Experienced in electrical equipment, professional sales & R&D, competitive pricing, timely delivery, sincere service.
Q2: How is your after-sale service?
A: 1-2 years warranty, 1% free spare parts. We repair or replace the PCB.
Q3: What certifications do you have?
A: ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass required labor testing per country"s requirements.
Q4: Delivery time:
A: Standard products delivered within 15 days.
Q5: Can I have a sample order?
A: Yes, sample orders are welcome to test and check quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
