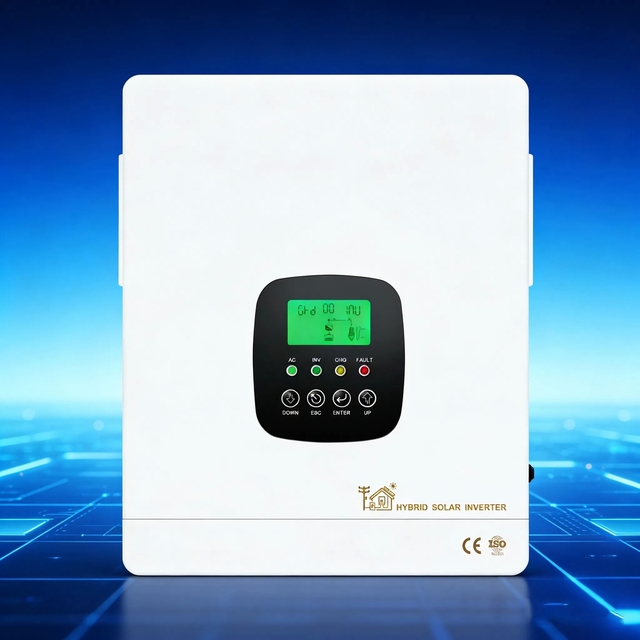

Durable Feimengsi Hybrid Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range for Pure Sine Wave Output
2 Questions
|
96 Sold
|
Inquiry
Collected In Wish List
Durable Feimengsi Hybrid Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range for Pure Sine Wave Output
SKU: 20260624172723C2
$128.23
$128.23
$148.23
$ 10.3
to
United States
Via
ePacket
You May Also Like
-10%
230V Hybrid Inverter with Bidirectional Energy Storage and Pure Sine Wave for Solar Power Generation
$179.63
- $239.63
$199.63
Description
Specification
Questions & Answers (2)
Reviews (0)
Durable Feimengsi Hybrid Inverter - Perfect for Off-Grid Applications
Reliable Wall-Mounted Home Battery Storage System
High-frequency design, compact size, and high efficiency; bidirectional energy storage for solar and mains charging; ultra-wide 30-80Vdc MPPT range.
Technical Specifications
| Parameter | 1000W | 1300W | 1800W | 1800W | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800W | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | |||
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Output Current | 4.3A | 5.6A | 7.8A | 7.8A | 10A | 14.3A |
| Grid Voltage Range | 187Vac-264Vac | |||||
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss (Battery Discharge) | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Advanced Features
Supports grid-connected, off-grid, and hybrid modes. Allows setting of grid-connected current.
Provides output and charging priority settings. Features BMS communication for lithium batteries.
Supports battery-free operation mode.
Frequently Asked Questions
Why should you choose us?
Experienced electrical production, professional sales & R&D team, qualified products, competitive prices, timely delivery, sincere service.
How is your after-sale service?
1-2 years warranty with 1% spare parts free; repair or replace PCB.
What kind of certification do you have?
ISO9001, ISO14001, CE, ROHS, UL, and more. All products pass various tests per country"s requirements.
What is the delivery time?
Standard products deliverable within 15 days.
Can I have a sample order?
Yes, we welcome sample orders to test and check quality.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
Q: This machine has transformed our office coffee culture. No more settling for instant coffee—everyone now looks forward to their morning brew. The operation is so simple that even our older team members have no trouble using it. The build quality feels sturdy and long-lasting.
A:
This is the official product QA response, covering all the questions raised by users regarding product functions, usage scenarios, technical parameters and after-sales support. We have verified and sorted out the answers in detail to ensure accuracy and comprehensiveness for your reference.
Q: The OfficePro Smart machine is worth every investment. It handles our team’s high coffee demand (30+ cups daily) with ease, and the automatic cleaning function keeps it hygienic. The coffee tastes rich and full-bodied, comparable to our local café.
A:
Here is the comprehensive product QA reply. All answers are formulated based on the actual product specifications and service standards, aiming to solve your doubts about product application, performance and related services in a professional and thorough manner.
