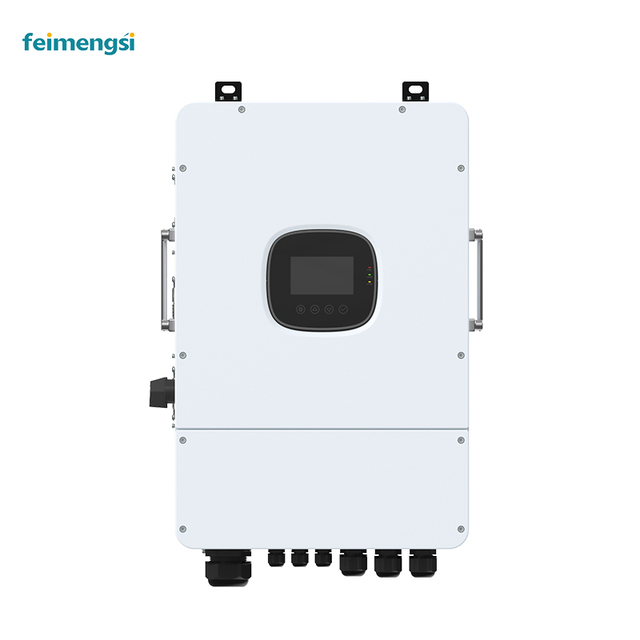

Feimengsi Hybrid Inverter - Reliable Power Backup System
High-frequency, compact wall-mounted home battery storage system featuring bidirectional energy flow for solar and mains charging with wide 30-80Vdc MPPT range.
Key Features
- Supports grid-connected, off-grid, and hybrid operation modes
- Allows grid-connected current settings
- Offers output and charging priority settings
- Features BMS communication for lithium batteries
- Supports battery-free operation
- Customizable battery parameters for different battery types
Technical Specifications
| Specification | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
|---|---|---|---|---|---|---|
| Rated Power | 1000W | 1300W | 1800W | 1800w | 2300W | 3300W |
| Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W |
| MPPT Tracking Voltage Range | 30Vdc-240Vdc | 40Vdc-350Vdc | 40Vdc-450Vdc | |||
| Rated Voltage | 180Vdc | 240Vdc | ||||
| Max PV Input Voltage (VOC) | 300Vdc | 400Vdc | 500Vdc | |||
| Max PV Input Current | 13A | 15A | 18A | - | - | - |
| MPPT Tracking Channels | 1 Routed | |||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Rated Battery Voltage | 12Vdc | 24Vdc | ||||
| Battery Voltage Range | 10.5-15Vdc (default) | 21-30Vdc (default) | ||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A |
| Rated Input Voltage | 230V (220V or 240V can be set) | |||||
| Mains Input Voltage Range | 165Vac-280Vac/120Vac-280Vac (can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz) | |||||
| Rated Output Voltage | 230V (220V or 240V can be set) | |||||
| Output Voltage Accuracy | ±2% | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Grid Voltage Range | 187Vac-264Vac | |||||
| Power Factor | >0.98 (Rated Power) | |||||
| No Load Loss | 1% Rated Power (Typical value) | |||||
| MPPT Tracking Efficiency | ≥99.9% | |||||
| Transfer Time | 10ms (Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional) | |||||
| Protection Degree | IP20 | |||||
| Anti-islanding Protection | ≤2S | |||||
Physical Dimensions & Weight
| Model | Product Size (L·W·H mm) | Package Size (L·W·H mm) | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|---|---|
| 1000W-1800W | 265*231*91 - 310*250*91 | 340*286*156 - 385*305*156 | 3.0 - 4.0 | 3.5 - 5.0 |
| 2300W-3300W | 285*250*91 - 325*275*102 | 360*305*156 - 400*330*167 | 3.7 - 5.5 | 4.6 - 6.5 |
