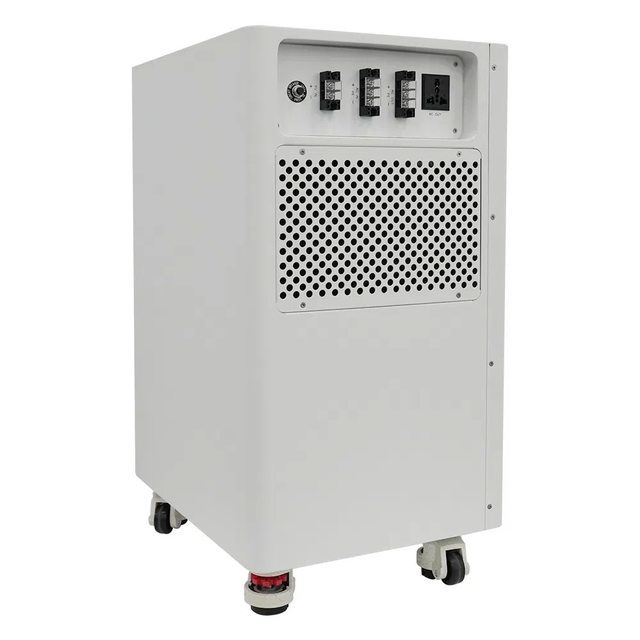

User-Friendly 16kwh All-in-One Battery with Built-in Fan Cooling for Home Energy Storage System
Collected In Wish List
16kWh All-in-One Residential Battery for 24-hour Outdoor Power Home Energy Storage System
Modular Design 6kw 15kwh All-in-One Home Battery Energy Storage System with Integrated Solar
16kwh Home Energy Storage System with 3000W Output Power and Built-in Fan Cooling
200V High Voltage Home Energy Storage System with 5.12kWh Nominal Capacity and Modular Stackable Design
5.12kWh Modular Home Energy Storage System with 90% Depth of Discharge and 5000W Pure Sine Wave Inverter
Premium 16kWh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
Reliable 16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
16kwh All-in-One Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
16kwh All-in-One Battery with Built-in Fan Cooling and 3000W Output Power for Home Energy Storage
16kwh Modular Design Home Energy Storage System with Built-in Fan Cooling for Uninterrupted Power
16kwh Modular Design Home Energy Storage Battery with Built-in Fan Cooling for Solar Storage System
The H3 series solar storage system integrates photovoltaic inverters and lithium batteries, simplifying user wiring and maintenance. It provides 24-hour outdoor power supply, making it ideal for areas with limited electricity access.
| Model | SMP-FU002 |
|---|---|
| Battery Pack Specifications | 25.6V100Ah |
| Nominal Voltage | 25.6V |
| Operating Voltage Range | 21.6V~28.8V |
| Rated Energy | 2.56kWh |
| Maximum PV Open-Circuit Voltage | 160VDC |
| MPPT Voltage Range | 30~128VDC |
| Maximum Input Power | 1600W |
| Maximum Charge/Discharge Current | 50A |
| Input/Output Voltage | 220~240VAC |
| Selectable Voltage Range | 170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE) |
| Input Current | 14A |
| Output Current | 17A (terminal)/10A (socket) |
| Frequency | 50Hz/60Hz (adaptive) |
| Rated Output Power | 3000W |
| Communication Protocol | RS485/WIFI |
| Operating Altitude | ≤2000m |
| Cooling Method | Built-in Fan |
| Installation Type | Floor-standing |
| IP Rating | IP20 |
| Cycle Life | ≥6000 @25℃,80%DOD |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -20~55℃ |
| Humidity | ≤80% |
| Product Dimensions | 450*671*330mm |
| Packaging Dimensions | 550*771*450mm |
| Net Weight | 45kg |
- All-in-one design integrates inverter and battery
- Simplified wiring and maintenance
- 24-hour outdoor power supply capability
- Ideal for areas with limited electricity access
- Advanced communication protocols (RS485/WIFI)
- High cycle life of ≥6000 cycles
- Adaptive frequency (50Hz/60Hz)
