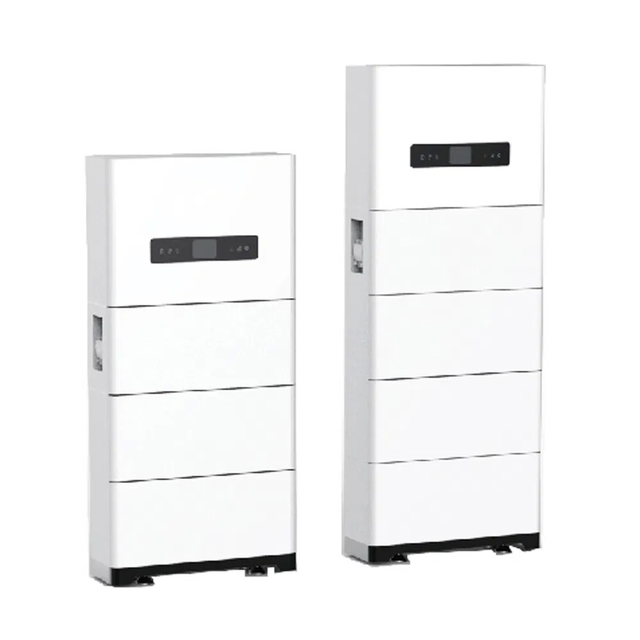

200V High Voltage Home Energy Storage System with 5.12kWh Nominal Capacity and Modular Stackable Design
21 Sold
|
Inquiry
Collected In Wish List
200V High Voltage Home Energy Storage System with 5.12kWh Nominal Capacity and Modular Stackable Design
SKU: 20260624173317C2
$172.57
$172.57
$192.57
$ 10.3
to
United States
Via
ePacket
You May Also Like
-9%
16kwh Modular Design Home Energy Storage System with Built-in Fan Cooling for Uninterrupted Power
$201.38
- $261.38
$221.38
-9%
16kwh All-in-One Battery with Built-in Fan Cooling and 3000W Output Power for Home Energy Storage
$209.52
- $269.52
$229.52
-9%
16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$201.87
- $261.87
$221.87
-9%
Modular Design 6kw 15kwh All-in-One Home Battery Energy Storage System with Integrated Solar
$198.46
- $258.46
$218.46
-9%
16kwh Home Energy Storage System with 3000W Output Power and Built-in Fan Cooling
$202.98
- $262.98
$222.98
-14%
5.12kWh Modular Home Energy Storage System with 90% Depth of Discharge and 5000W Pure Sine Wave Inverter
$127.91
- $187.91
$147.91
-11%
16kWh All-in-One Residential Battery for 24-hour Outdoor Power Home Energy Storage System
$165.87
- $225.87
$185.87
-15%
Premium 16kWh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$117.61
- $177.61
$137.61
-15%
16kwh Modular Design Home Energy Storage Battery with Built-in Fan Cooling for Solar Storage System
$111.83
- $171.83
$131.83
-12%
16kwh All-in-One Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$149.87
- $209.87
$169.87
-11%
Reliable 16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$155.6
- $215.6
$175.6
-13%
User-Friendly 16kwh All-in-One Battery with Built-in Fan Cooling for Home Energy Storage System
$130.34
- $190.34
$150.34
Description
Specification
Questions & Answers (0)
Reviews (0)
Home Solar Power Station Stacked Energy Storage System
200V High Voltage with Inverter - Advanced energy storage solution for residential applications
Product Gallery
Technical Specifications
| Parameter | SMP-CU004-2 | SMP-CU004-3 | SMP-CU004-4 |
|---|---|---|---|
| Battery Pack Parameters | |||
| Single Battery Pack Energy | 5.12kWh | ||
| Nominal Voltage | 102.4V | ||
| Product Dimensions | 700*235*307mm | ||
| Packaging Dimensions | 790*325*402mm | ||
| Total Product Dimensions | 700*235*1470mm | 700*235*1772mm | 700*235*2075mm |
| Total Product Net Weight | 132kg | 177kg | 222kg |
| Total Voltage | 204.8V | 307.2V | 409.6V |
| Rated Energy | 10.24kWh | 15.36kWh | 20.48kWh |
| Operating Voltage | 172.8~230.4V | 259.2~345.5V | 345.6~460.8V |
| Operating Temperature | 0~55°C | ||
| Storage Temperature | -20~55°C | ||
| IP Rating | IP54 | ||
| Cooling Method | Natural Cooling | ||
| Communication Protocol | CAN/WIFI | ||
| PV Input Parameters | |||
| Maximum Power | 15000W | ||
| Maximum Voltage | 1000VDC | ||
| MPPT Voltage Range | 200~850VDC | ||
| Maximum Current per String | 13A/13A | ||
| AC Output/Input Parameters | |||
| Standard Power | 10000W | ||
| Maximum Output/Input Current | 17A/25A | ||
| Standard Frequency/Voltage | 50/60Hz; 400/380VAC | ||
Product Features
Manufacturer Information
Zhejiang Fimos Energy Technology Co., Ltd.
Zhejiang Fimos Energy Technology Co., Ltd. is a forward-thinking enterprise dedicated to the research, development, production, and sales of advanced energy storage solutions. With a strong focus on innovation and sustainability, we aim to empower a greener future by providing safe, efficient, and intelligent energy storage systems for residential, commercial, and mobile applications.
Logistics and Services
Frequently Asked Questions
Q1. Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 pallet.
Q2. How about your delivery time?
A: For the big capacity, we can deliver around 25 days. Depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Q3. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service. We can design the packaging and logo according to your requirements.
Q4. Do you test all your goods before delivery?
A: Yes, all our products have been tested before delivery.
Q5. Tell me the standard of package?
A: We use cartons and pallets for protection.
Q6. Could you offer Form A or C/O?
A: No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates for free.
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
