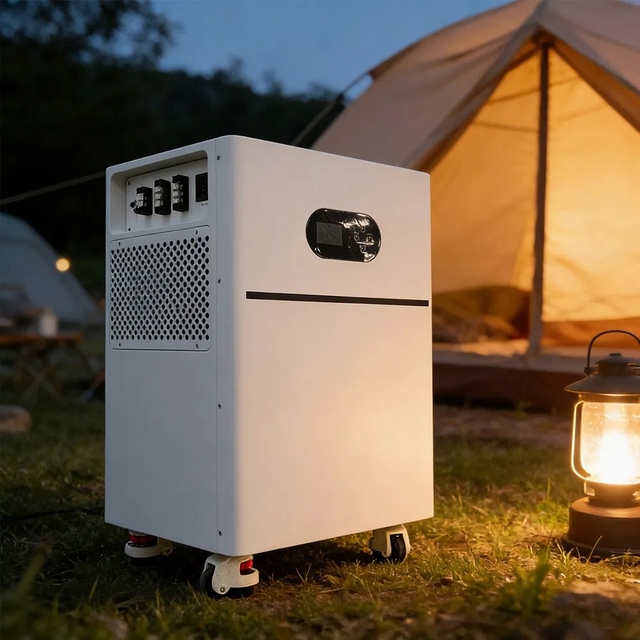

Modular Design 16kwh Home Energy Storage System with Built-in Fan Cooling All-in-One Solution
70 Sold
|
Inquiry
Collected In Wish List
Modular Design 16kwh Home Energy Storage System with Built-in Fan Cooling All-in-One Solution
SKU: 20260624173920C2
$188.6
$188.6
$208.6
$ 20
to
United States
Via
Fedex IP
You May Also Like
-9%
16kwh All-in-One Battery with Built-in Fan Cooling and 3000W Output Power for Home Energy Storage
$209.52
- $269.52
$229.52
-11%
Reliable 16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$155.6
- $215.6
$175.6
-15%
Premium 16kWh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$117.61
- $177.61
$137.61
-9%
Modular Design 6kw 15kwh All-in-One Home Battery Energy Storage System with Integrated Solar
$198.46
- $258.46
$218.46
-10%
200V High Voltage Home Energy Storage System with 5.12kWh Nominal Capacity and Modular Stackable Design
$172.57
- $232.57
$192.57
-11%
16kWh All-in-One Residential Battery for 24-hour Outdoor Power Home Energy Storage System
$165.87
- $225.87
$185.87
-9%
16kwh Modular Design Home Energy Storage System with Built-in Fan Cooling for Uninterrupted Power
$201.38
- $261.38
$221.38
-13%
User-Friendly 16kwh All-in-One Battery with Built-in Fan Cooling for Home Energy Storage System
$130.34
- $190.34
$150.34
-15%
16kwh Modular Design Home Energy Storage Battery with Built-in Fan Cooling for Solar Storage System
$111.83
- $171.83
$131.83
-9%
16kwh Home Energy Storage System with 3000W Output Power and Built-in Fan Cooling
$202.98
- $262.98
$222.98
-9%
16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$201.87
- $261.87
$221.87
-14%
5.12kWh Modular Home Energy Storage System with 90% Depth of Discharge and 5000W Pure Sine Wave Inverter
$127.91
- $187.91
$147.91
-12%
16kwh All-in-One Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power
$149.87
- $209.87
$169.87
Description
Specification
Questions & Answers (0)
Reviews (0)
Modular Design 16kWh Home Energy Storage Battery All-in-One Solution
PV Energy Storage Integrated Machine
The H3 series integrates solar inverters and lithium batteries, simplifying wiring and maintenance. It provides 24-hour outdoor power supply, making it ideal for electricity-scarce areas.
Technical Specifications
| Model | SMP-FU002 |
| Battery Pack Specifications | |
| Battery Pack Specifications | 25.6V100Ah |
| Nominal Voltage | 25.6V |
| Operating Voltage Range | 21.6V~28.8V |
| Rated Energy | 2.56kWh |
| PV Input Parameters | |
| Maximum PV Open-Circuit Voltage | 160VDC |
| MPPT Voltage Range | 30~128VDC |
| Maximum Input Power | 1600W |
| Maximum Charge/Discharge Current | 50A |
| AC Output/Input Parameters | |
| Input/Output Voltage | 220~240VAC |
| Selectable Voltage Range | 170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE) |
| Input Current | 14A |
| Output Current | 17A (terminal)/10A (socket) |
| Frequency | 50Hz/60Hz (adaptive) |
| Rated Output Power | 3000W |
| General Parameters | |
| Communication Protocol | RS485/WIFI |
| Operating Altitude | ≤2000m |
| Cooling Method | Built-in Fan |
| Installation Type | Floor-standing |
| IP Rating | IP20 |
| Cycle Life | ≥6000 @25℃,80%DOD |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -20~55℃ |
| Humidity | ≤80% |
| Product Dimensions | 450*671*330mm |
| Packaging Dimensions | 550*771*450mm |
| Net Weight | 45kg |
