Description
Specification
Questions & Answers (0)
Reviews (0)

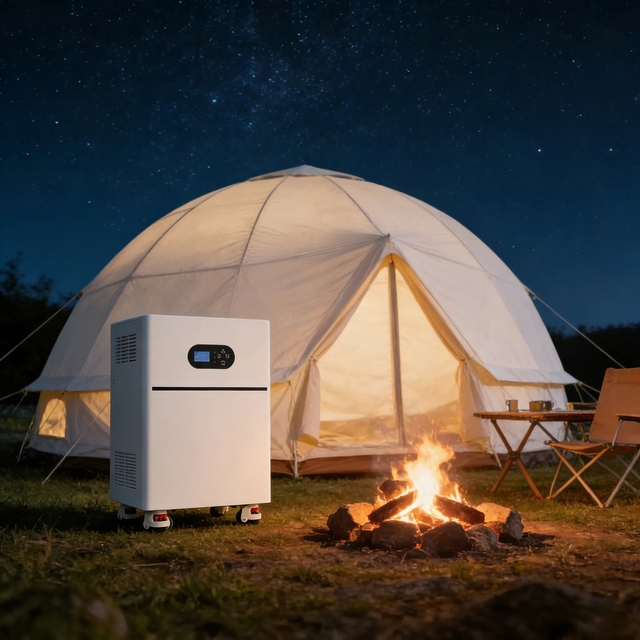

Innovative Modular Design 16kWh Battery for Home Energy Storage
PV Energy Storage Integrated Machine
The H3 series integrates solar inverters and lithium batteries, enhancing maintenance ease and reducing wiring complexity. It provides 24-hour uninterrupted power for outdoor applications, making it ideal for electricity-scarce areas.
Technical Specifications
| Model | SMP-FU002 |
|---|---|
| Battery Pack Specifications | |
| Battery Pack Specifications | 25.6V100Ah |
| Nominal Voltage | 25.6V |
| Operating Voltage Range | 21.6V~28.8V |
| Rated Energy | 2.56kWh |
| PV Input Parameters | |
| Maximum PV Open-Circuit Voltage | 160VDC |
| MPPT Voltage Range | 30~128VDC |
| Maximum Input Power | 1600W |
| Maximum Charge/Discharge Current | 50A |
| AC Output/Input Parameters | |
| Input/Output Voltage | 220~240VAC |
| Selectable Voltage Range | 170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE) |
| Input Current | 14A |
| Output Current | 17A (terminal)/10A (socket) |
| Frequency | 50Hz/60Hz (adaptive) |
| Rated Output Power | 3000W |
| General Parameters | |
| Communication Protocol | RS485/WIFI |
| Operating Altitude | ≤2000m |
| Cooling Method | Built-in Fan |
| Installation Type | Floor-standing |
| IP Rating | IP20 |
| Cycle Life | ≥6000 @25℃,80%DOD |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -20~55℃ |
| Humidity | ≤80% |
| Product Dimensions | 450*671*330mm |
| Packaging Dimensions | 550*771*450mm |
| Net Weight | 45kg |
Manufacturer Profile
Zhejiang Fimos Energy Technology Co., Ltd.
We are dedicated to researching and producing advanced energy storage solutions. Focused on innovation and sustainability, we offer safe, efficient, and intelligent systems for residential, commercial, and mobile applications, empowering a greener future.
