Multi-Protection Integrated LFP LiFePO4 Lithium Energy Storage System
UL Approved BESS (Battery Energy Storage System)
Product Overview

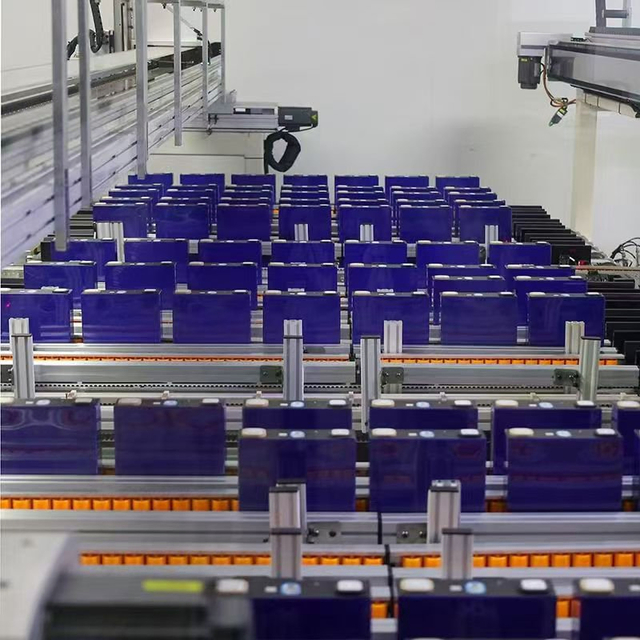

Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.
Technical Specifications
| General Specification | 1500V | 750V |
|---|---|---|
| Battery Type | LFP 100Ah | |
| Battery Energy Capacity (kWh) | 532.48 | |
| Nominal Voltage (V) | 1331.2 | 665.6 |
| Battery Voltage Range (V) | 1164.8~1497.6 | 582.4~748.8 |
| Max. CP-rate | 0.5CP | |
| Module Configuration | 2P16S*26S*2P | 2P16S*13S*4P |
| Dimension (WxHxD) (mm) | 2200*2443*1400 | |
| Weight (kg) | 6000 | |
| Max. Support Parallel Number | 8 | 4 |
| Audible Noise (dBA) | 75 | |
| Operating Ambient Temperature | -30~55°C | |
| Cooling Mode | HVAC | |
| Protection Class | IP54 | |
| Anti Corrosion Level | C4 | |
| Operating Humidity | 0~95% (no condensation) | |
| Fire Suppression | Aerosol | |
| Altitude (m) | ≤3000m | |
| Communication Protocol | Modbus TCP | |
Combiner Cabinet Specifications
| Max. DC Voltage (V) | 1,500 |
| DC Current (A) | 914*2 |
| DC Branch | 2 |
| Dimension (W*H*D, mm) | 1800*2443*1000 |
| Weight (kg/unit) | 1200 |
| IP Rating | IP55 |
Certifications & Standards
- Safety: IEC62619, UL1973, UL9540A
- Transportation: UN38.3
- EMC: EMC, FCC
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
Focus on details and user experience, providing stable and trustworthy quality.
