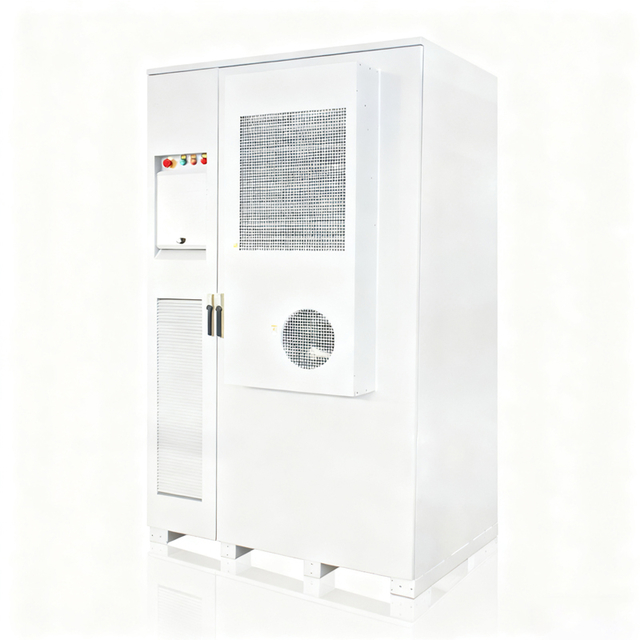

200kWh Containerized Power Storage System with 4000 Cycles and IP54 Protection LiFePO4 Energy Storage System
46 Sold
|
Inquiry
Collected In Wish List
200kWh Containerized Power Storage System with 4000 Cycles and IP54 Protection LiFePO4 Energy Storage System
SKU: 20260624172419C2
$147.22
$147.22
$167.22
$ 18
to
United States
Via
DHL
You May Also Like
-10%
1500V 532.48kWh LiFePO4 Energy Storage System with IP54 Protection for Industrial Applications
$188.44
- $248.44
$208.44
-10%
1500V 532.48kWh LiFePO4 Lithium Battery Energy Storage System with IP54 Protection for RV/Camping
$180.58
- $240.58
$200.58
-14%
1500V 532.48kWh LiFePO4 Lithium Battery BESS with IP54 Protection for Stable Cabinet Energy Storage
$120.58
- $180.58
$140.58
-10%
Fireproof LiFePO4 Battery Energy Storage System with 1500V Capacity and IP54 Protection
$171.93
- $231.93
$191.93
-10%
100kWh Smart LFP Battery Energy Storage System with 4000 Cycles and IP54 Protection for PV Matching
$180.66
- $240.66
$200.66
Description
Specification
Questions & Answers (0)
Reviews (0)
200kWh Containerized Power Storage System
Smart LiFePO4 Lithium Energy Storage All-in-One System
Product Overview
Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, exceptional safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.
Technical Specifications
| Parameter | 1500V System | 750V System |
|---|---|---|
| Battery Type | LFP 100Ah | |
| Battery Energy Capacity (kWh) | 532.48 | |
| Nominal Voltage (V) | 1331.2 | 665.6 |
| Battery Voltage Range (V) | 1164.8~1497.6 | 582.4~748.8 |
| Max. CP-rate | 0.5CP | |
| Module Configuration | 2P16S*26S*2P | 2P16S*13S*4P |
| Dimension (W×H×D) (mm) | 2200×2443×1400 | |
| Weight (kg) | 6000 | |
| Max. Support Parallel Number | 8 | 4 |
| Audible Noise (dBA) | 75 | |
| Operating Ambient Temperature | -30~55°C | |
| Cooling Mode | HVAC | |
| Protection Class | IP54 | |
| Anti Corrosion Level | C4 | |
| Operating Humidity | 0~95% (no condensation) | |
| Fire Suppression | Aerosol | |
| Altitude (m) | ≤3000m | |
| Communication Protocol | Modbus TCP | |
Combiner Cabinet Specifications
| Max. DC Voltage (V) | 1,500 |
| DC Current (A) | 914×2 |
| DC Branch | 2 |
| Dimension (W×H×D, mm) | 1800×2443×1000 |
| Weight (kg/unit) | 1200 |
| IP Rating | IP55 |
Certifications
- Safety: IEC62619, UL1973, UL9540A
- Transportation: UN38.3
- EMC: EMC, FCC
Our Products
Key Features
Application Scope
Packing & Delivery
Factory Display
Certification Details
Company Profile
Made of high-quality materials with stable performance and safe usage.
Precise craftsmanship ensures excellent texture and stylish appearance.
Ergonomic design brings comfortable experience and easy operation.
Durable structure with long service life and low wear.
Strict quality control guarantees reliable overall quality.
Versatile and practical, suitable for daily, business and gifting scenarios.
Premium QualityFine CraftsmanshipWide ApplicationCost Effective
